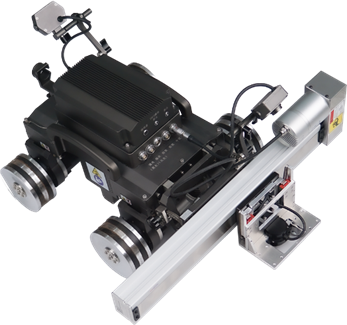

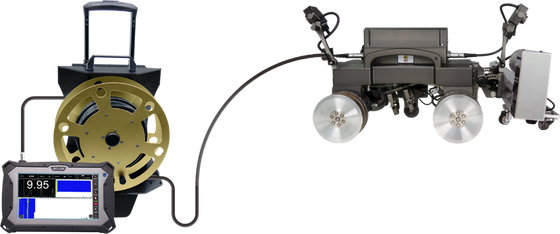

TG-M704 Magnetic Crawler C-scan Corrosion Thickness Measurement System with Remote Control and High-Strength Permanent Magnet Wheel for No Scaffolding Needed

This advanced system enables rapid detection of high-altitude wall thickness corrosion through remote control, eliminating the need for scaffolding, surface polishing of anti-corrosion layers, or any couplant.

• Uses rare-earth high-strength permanent magnet wheels for secure attachment - will not fall even during power failure
• Performs horizontal, vertical, and inverted multi-attitude motions on ferromagnetic surfaces
• Equipped with electromagnetic ultrasonic thickness measurement probe for rapid corrosion screening and localization
• Intensive and accurate scanning of suspected corrosion areas quantifies wall corrosion
• Standard A, B, and C scan displays for comprehensive thickness analysis
• Integrated video camera for real-time surface inspection monitoring
• Remote control operation with preset scanning tracks for automated scanning

• Integrated front-view and rear-view dual cameras for real-time monitoring
• Strong magnetic suction with vertical upward load capacity up to 16kg
• Multiple movement postures: vertical, horizontal, inclined, and inverted
• High motion precision with millimeter-level programmed step detection
• Compact design with small turning radius for maneuverability
• Distance positioning (error ≤30mm) with optional defect marking
• Professional scanning clamping mechanism ensures stable travel and probe coupling
• Sealed protective box prevents water, iron filings, and foreign object entry

• Host: CPU ≥ i5/4GHz quad-core, 10.6" high-brightness HD display
• Control cable: 30m (customizable ≤50m)
• Longitudinal movement: stepping speed 5~200mm/s, barrier crossing ≤4mm
• C-scan bracket: total travel 300mm (customizable), speed 0-80mm/s
• Minimum surface curvature radius: ≥0.75m (no residual height), ≥1.5m (with weld seams)
• Crawler body: L350×W330×H230mm, weight ~17kg, passes through Φ450mm holes
• Video monitoring: 3 million pixel dual cameras
• Operating temperature: -10℃ to +50℃, Humidity ≤85% R.H.

• No surface polishing required - penetrates anti-corrosion coating and rust
• No couplant needed for operation
• Penetrates surface coatings up to 4mm thick
• Measurement non-perpendicularity up to ±25°
• Multiple display formats: digital values, A-scan, time-based B-scan, distance-based B-scan
• Intelligent algorithm with automatic, single gate, and double gate measurement modes

• Thickness measurement accuracy: 0.04mm
• Measurement range: 2~120mm (Steel)
• Work clearance/lift-off: ≤4mm
• Sound speed range: 1000~9999 m/s
• EMAT probe: circular Φ30×44mm, weight ≤80g
• Working temperature: -10~+50℃

• Simultaneous display of thickness, A, B, C scan results
• Direct test record generation with thickness value lists for data analysis
• Compatible with operating systems
