Coating Thickness Gauge Tin Plating On Copper Galvanized Layer Multifunction

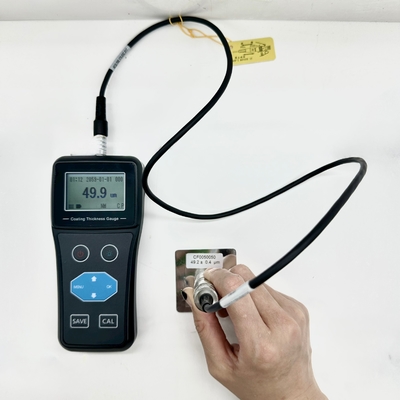

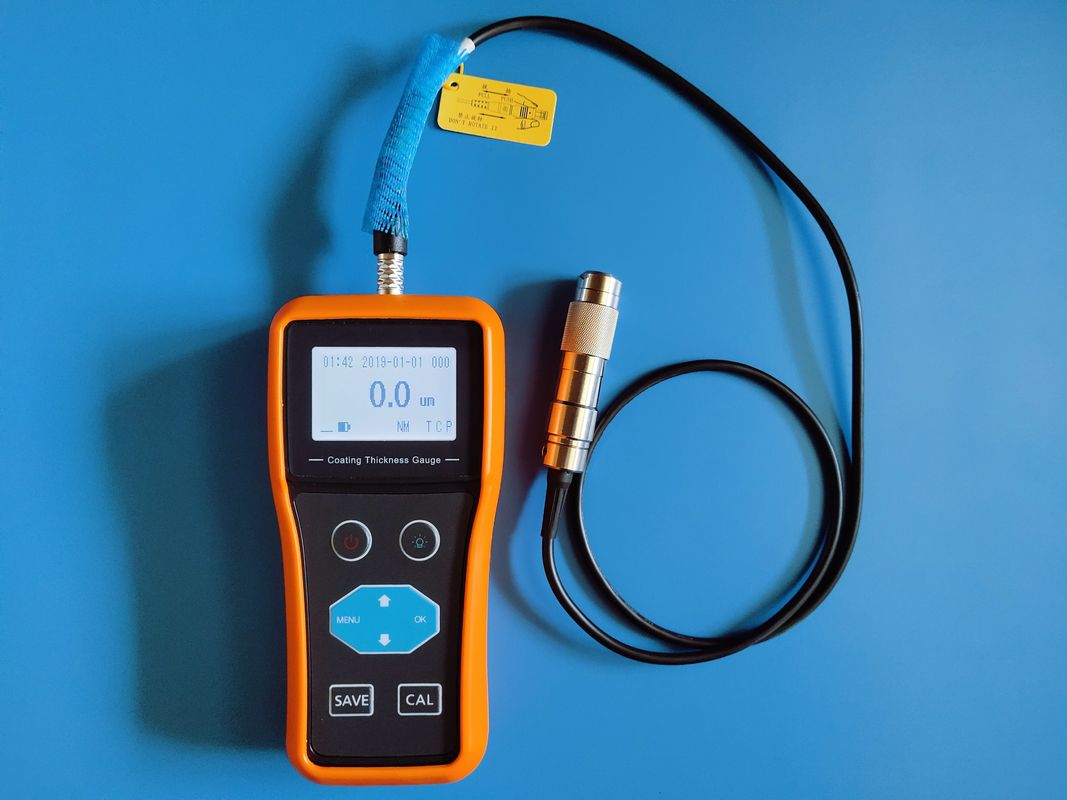

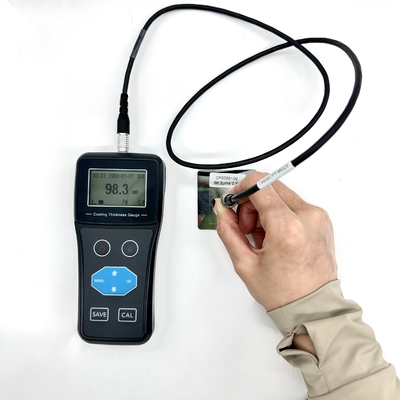

TG-6105 is a magnetic and eddy current portable coating thickness gauge, It can quickly, without damage, the precision to measure magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.) on the magnetic coating thickness (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) and nonmagnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) on the conductive layer thickness (such as rubber, paint, plastic, anodic oxidation film, etc.),
NM:Probe type, T:Tin plating on copper, C:Real time temperature compensation,P: single measurement
Application:
Can be used in the laboratory, Can also be used in engineering site, is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields, is the material protection professional necessary instrument.
Technical Parameters:
| Display accuracy |
0.1 um(0 ~ 99.9 um),1um(100 ~ 10000 um),0.1g/㎡(model TG-6105P) |
| Calibration Mode |
Zero, One-Point, Two-Point and Basic Calibration |
| Measuring mode |
Single point, scan mode, weight mode,differential mode, Mean value model,alarm mode |

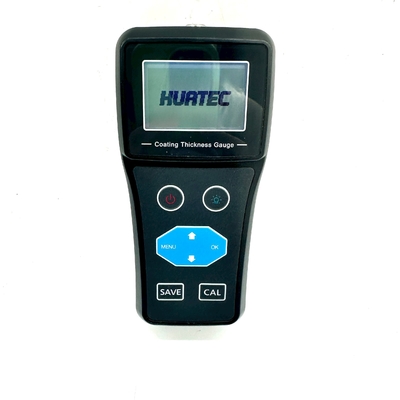

| Display |
English / Chinese selectable, FSTN LCD Display with backlight |
| Screen display |
Thickness measurement value, unit weight measurement value, density set value, date, time, coupling state, Bluetooth state (optional), power indicator, measurement mode, probe type, real-time temperature compensation state, data storage state, storage file state, etc |
| Data memory |
500 measurements, including time, probe type, etc. |
| Communication |
Bluetooth (optional) & Mini-USB interface, virtual serial port protocol, support online measurement with PC or Smart Phones, host software upgradable |
| Data printing |
Optional portable Bluetooth thermal printers |
| Power supply |
3 * AAA alkaline batteries for 100 hours usage (close backlight) |
| Power off |
Timeout power off, and low battery power off |
| Temperature |
Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C |
| Size and weight |
150mm*70mm*30mm / about 160g(no battery) |

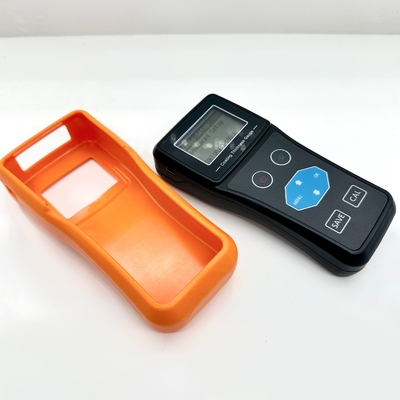

| Material |
ABS and PC alloy(IP67) |
TG-6105 series probe guide
| Probe type |
F probe (Magnetic induction) |
N probe(eddy current) |
| Usage |
Non-magnetic coating on magnetic metal substrate |
Non-conductive coating on non-magnetic metal substrate |
| Probe type |
FM |
FL |
FX |
FT |
FS |
FH |
NM |
NL |
| Measuring range(μm) |
0 ~ 1500 |
0 ~ 3000 |
0~10000 |
0 ~ 1500 |
0 ~ 500 |
0 ~ 3000 |
0 ~ 1500 |
0 ~ 3000 |
| Measuring accuracy(μm) |
Basic calibration |
±(0.5+1% H) |
±(1+2% H) |
±(1+3% H) |
±(1+1% H) |
±(0.5+1% H) |
±(1+2% H) |
±(0.5+1% H) |
±(1+2% H) |
| Zero point calibration |
±(1+2% H) |
±(1+3% H) |
±(2+5% H) |
±(1+2% H) |
±(1+2% H) |
±(1+3% H) |
±(1+2% H) |
±(1+3% H) |
| Min. Radius of Curvature |
convex 1.5mm |
convex 1.5mm |
convex 10mm |
convex 1.5mm |
convex 1mm |
convex 1.5mm |
convex 3mm |
convex 6mm |
| Min. Radius of Area |
Φ7mm |
Φ7mm |
Φ40mm |
Φ7 mm |
Φ3mm |
Φ7mm |
Φ5mm |
Φ7mm |
| Critical Thickness of Plate |
0.5mm |
0.5mm |
2mm |
0.5 mm |
0.2 mm |
0.5 mm |
0.3 mm |
1 mm |
| Temperature(°C) |
0 ~ 50 |
0 ~ 50 |
0 ~ 50 |
0 ~ 50 |
0 ~ 50 |
0 ~ 300 |
0 ~ 50 |
0 ~ 50 |
| Measuring direction |
 |
|
|
|
|
|
|
|
| Common Scope of Application |
Standard probe
Conventional coating paint layer, etc
|
Thicker probe paint layer, spray coating, etc |
Ultra-thick probe anticorrosion layer,
Fire protection layer etc.
|
The narrow area inside the pipe with right Angle probe |
Small probe, small workpiece, fastener, etc |
High temperature probe can withstand high temperature of 300℃ |
Standard probe oxide layer, spray coating,
Copper plated tin, chrome plated
|
Thicker probe coating, paint coating, etc |
TG-6105 series model guide
| Model |
Bluetooth |
Weight measuring |
Command control |
| TG-6105(basic) |
- |
- |
- |
| TG-6105B(bluetooth) |
√ |
- |
- |
| TG-6105P(gram weight) |
- |
√ |
- |
| TG-6105BP(bluetooth &weight) |
√ |
√ |
- |
| TG-6105OC(on line) |
- |
- |
√ |
| TG-6105OB(bluetooth & on line) |
√ |
- |
√ |
| TG-6105OP(gram weight & on line) |
- |
√ |
√ |
| TG-6105OBP(gram weight,bluttooth&on line) |
√ |
√ |
√ |
Note: RS232/485 and other communication port optional for on line model
Features:
adopts high-precision sampling chip and special calibration model, with advanced real-time temperature compensation technology, can achieve full range of accurate measurement, and can accurately measure the thickness of ultra-thin electroplating and oxide layer below 20um
can be measured at the same time galvanized layer thickness and unit weight (gram version)
supports a variety of probe specifications, the probe can be re-matched with the main instrument after wear, effectively prolonging the probe service life
has high precision single point measurement, scanning measurement, unit weight measurement (gram weight version TG-6105P), difference measurement, average measurement and other measurement modes
has zero point calibration, one point calibration, two point calibration and basic calibration functions, can automatically correct the system error
has the function of data storage, and can be grouped to the saved data for statistical analysis
can set the upper and lower limits of thickness value, beyond the range of automatic buzzing alarm
with coupling state prompt function, intuitive grasp of the measurement state
displays rich information, including thickness value, coupling state, electric quantity information, test time, storage state, etc
Built-in Bluetooth module (optional Bluetooth version) and Mini-USB interface, optional Bluetooth printer, and can communicate with PC or intelligent terminal devices for wired and wireless data transmission
supports real-time online measurement, instruction control (instruction version), the host software can be upgraded
can be equipped with RS232, RS485 communication interface, optional for on line model
can be customized thickness measuring module and thickness measuring sensor
