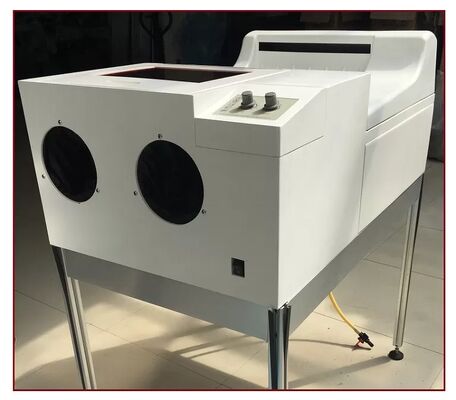

HDL-K14 NDT Bright Room Film Washing Machine Film Processor
HUATEC HDL-K14 NDT is an industrial X light film flushing machine operated in the Ming room. It is simple and simple in structure. It is especially suitable for field operation on site and mobile operation in vehicle.
HUATEC HDL-K14 NDT bright room film washing machine advantages:
Compact design, small space for mobile operation: the chamber washing machine is composed of two parts, which are dark box and rinse. It can complete the film of X light film (put the film into the dark bag) and the developing, fixing, washing and drying.
The professional design of the Ming room washing machine is especially suitable for the field operation: the film washing machine is developed and the medicine water is automatically returned to the storage tank when it does not work. In this way, the service life of the liquid is guaranteed. At the same time, the waste liquid of the mixture of traditional Chinese medicine is eliminated, and the medicine liquid is raised automatically when the washing machine works. To the designated working level, to ensure the quality of film flushing, and to eliminate the trouble that the traditional washing machine must pass the replenishment liquid can ensure the quality of the film.
The developing, fixing and drying axle frame system adopts integrated design: the developing parts of the axle frame are accurate, the film will not scratch when the film is flushed. No matter how the operation can keep the film smoothly flushed and not produce the card, the beginner can do the operation.
There is no pipe design in the washing machine of the Ming room: the special circulation pump is used to guarantee the circulation of the liquid, and the complex pipeline design of the traditional washing machine is removed, and the long term use will not plug the fault caused by the pipeline.
Technical parameters:
| The size of the film |
5 x 10 cm to 35 cm wide |
| Run time |
6 minutes -15 minutes (10 gear adjustable) |
| The film speed |
90 mm / min (running time is 6 minutes) |
| Power |
220~240V6A 50 or 60Hz |
| Volume (long * width * high) |
82 x 52 x 42 mm |
| Gross weight |
38 kilograms (no liquid in the slot) |
90-210 seconds of development
6 liters of the volume of the drug tank (each addition capacity)
The developing temperature can be adjusted from 23-35 degrees
The setting temperature is automatically adjusted according to the developing temperature
65 degrees of drying temperature
5~30 degree of water temperature
Water consumption film runs at 1.6 litres / min (Flushing film), or waterless circulation design.

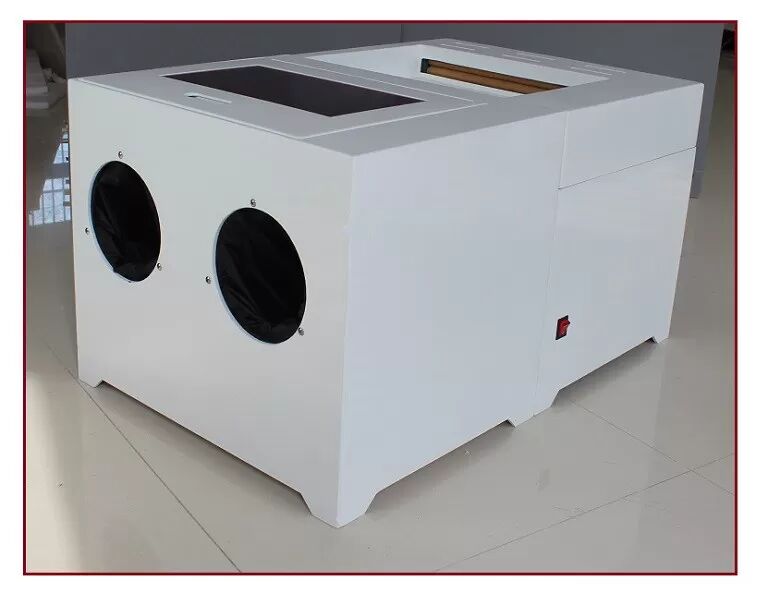

The dark box of HDL-K14 NDT punching machine is made of special Polaroid material. The user can see the whole process of the dark box and film flushing, and the bright room is washed without further building.
