LED Industry Radiographic Film Viewer & Densitometer

LED Industry Radiographic Film Viewer & Densitometer
LED Industry Radiographic Film Viewer & Densitometer LED Industry Radiographic Film Viewer & Densitometer

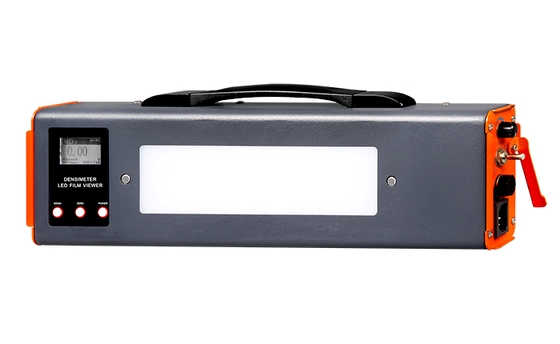

Imagem Grande :  LED Industry Radiographic Film Viewer & Densitometer

Detalhes do produto:
Lugar de origem: China
Marca: HUATEC
Certificação: ISO,CE
Número do modelo: HFV-3010M
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 unidade
Detalhes da embalagem: em Cartão
Tempo de entrega: 3 a 7 dias após o pagamento
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: 100 pcs por mês

LED Industry Radiographic Film Viewer & Densitometer

descrição
Nome do produto: Visor de filme Intensidade de luz máxima: >100.000 cd/㎡
É fácil ver: >4. 0 Densidade Requisitos de energia: 85-264 VCA/47-60 Hz
Destacar:

LED radiographic film viewer

,

industrial film densitometer

,

NDT equipment with warranty

LED Industry Radiographic Film Viewer & Densitometer



Features:

Maximum Light Intensity: >100,000cd/

Easily View >4. 0 Density

Pure White LED Light

50,000 Hour Lamp Life

Low Power Consumption

Fan cooling

Foot Switch

Uniform Viewing Area: 98% Full Screen

Dimmer Control: 0% to 100% continuous

Surface temperature: <18°

Built-desktop stand

Design: Modern, Stylish and Simple

Power Requirements: 85-264VAC/47-60Hz



Specifications:

MODEL: HFV-3010M
Pecifications:
Measuring range: 0.00-5.00D;
Measurement accuracy: ±0.05D;
Calibration scope: arbitrary value;
Visual display: 4-bit LCD;
Optical frequency sensor: American TAOS sensor;
Probe dimension: diameter is 3mm;
Power supply: built-in 3200mA lithium battery;
Specifications:
Adapter Input voltage: 85-264VAC/47-60Hz
Power: 120W
Maximum Light Intensity: >100, 000Cd/㎡
Surface temperature: <18° Celsius (Continuance working 24 hours under)
Uniform Viewing Area: 95% Full Screen
Dimmer Control: 0% to 100% continuous
Control mode: Manual + Foot-switch
Cooling Method: Forced air cooling
Dimensions: 530mm*60mm*155mm (L*W*H)
Substrate-mask window: 220mm*80mm (L*W)
Packing dimensions: 60cm*24cm*18cm
Weight: 6.5. 0KG



Package Contents:

LED viewer with densitometer HFV-3010M 1pc

Foot switch 1pc

AC power cord 1pc

Viewing mask 1pc

Magnetic film holder 2pcs

Magnetic ruler 1pc

User's manual 1pc

Calibration certificate 1pc



Trouble shooting Cause of the fault:

The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.

LED Industry Radiographic Film Viewer & Densitometer 0

LED Industry Radiographic Film Viewer & Densitometer 1
