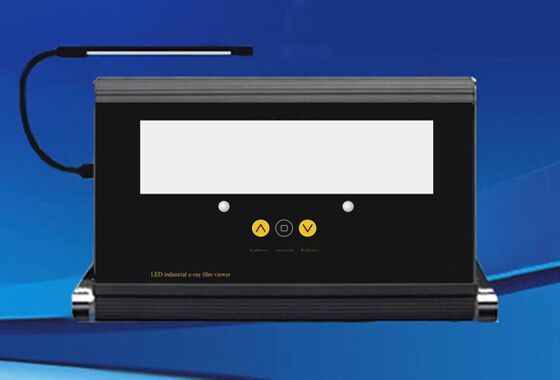

HFV-50D Flat Panel LED Industrial Radiographic Viewing Lamp for NDT X-ray Film Evaluation
HFV-50D LED industrial viewing lamp is a large window LED viewing lamp, suitable for evaluating radiographs with width less than 100mm, and window size in line with Europe, America, Japan, Taiwan, China, Asia Pacific, etc
Regional requirements for the size of viewing light windows. It inherits all the advantages of the HFV-50 flat panel industrial LED viewing lamp, which is bright
Higher degree, more stable and reliable performance, used for observing and evaluating films with a blackness<5.0; Meets NB/T47013.2-2015
The standards of "Non destructive Testing of Pressure Equipment" and GB/T19802-2005 "Non destructive Testing Industrial Radiographic Viewing Lamp".
Specifications
|
Maximum brightness
|
>120000cd/m2
|
|
Scattering coefficient
|
o=0.96
|
|
Uniformity coefficient
|
g=0.97
|
|
Power Supply
|
120W
|
|
window size
|
290mmx75mm
|
|
Appearance dimensions:
|
410x200x40mm
|
|
Weight
|
4.5Kg
|
|
power supply
|
~220V,50Hz/DC24 V
|
Features and innovation points
Flat panel type - completely subverts the appearance and structure of existing industrial film viewing lamps, transforming traditional bulky desktop film viewing lamps intoFor flat type, with a thickness of only 4cm;
Noise free - The casing is made of aluminum alloy drawn and serves as a heat sink, transforming traditional internal heat dissipation into external heat dissipation,Good heat dissipation effect, no noise after startup;
Capacitive touch dimming - technology superior to iPhone, sensing with just a light touch, even with thick gloves, it doesn't affect It has sensitivity and a lifespan of up to 30 years;
Temperature control and heat dissipation - using temperature sensors to detect LED temperature, controlling the operation of external heat dissipation fans, saving energy, without Noise;
Add soft light - the soft light is linked with the foot pedal, providing soft and non glaring light for easy recording and writing, as well as convenient viewing
Detecting and distinguishing false defects on the surface of the film;

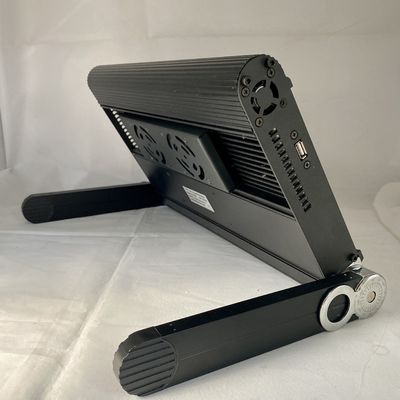

Adjustable Angle - The patented technology of the movable bracket allows for 360 ° adjustment of the angle. After unfolding and locking, it can support
Weighing over 70 kilograms, it is durable and long-lasting;
Exquisite circuit design - meticulously designed constant current source circuit, tailored DC24V AC adapter power supply, performance
Stable and durable.
