PE Pipe Weld Ultrasonic Scanner for Stainless Steel Plate & Pipe Weld Testing

PE Pipe Weld Ultrasonic Scanner for Stainless Steel Plate & Pipe Weld Testing

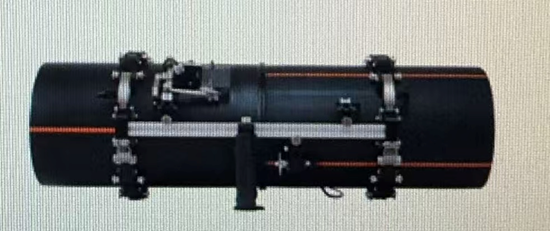

The PE pipe scanner is a kind of PE pipe inspection device, which is wrapped and fixed on the surface of PE pipe through the chain at both ends of the bracket body, so as to detect PE pipe

Applications:

PE pipe detection with pipe diameter between 60-300 mm.

Detection of hot-melt weld of ethylene pipe.

Detection of welds of stainless steel pipes.

Product Info

The PE pipe scanner is a kind of PE pipe inspection device, which is wrapped and fixed on the surface of PE pipe through the chain at both ends of the bracket body, so as to detect PE pipe. By replacing the quick-change parts on the chain, the PE pipe scanner can be used on the pipes with diameters between 60 and 300 mm.

The pressure of the scanner wedge and encoder wheel is provided by the torsion spring. By installing our probe and wedge, the PE pipe scanner can be applied to the detection of PE pipe hot-melt weldings. Since the encoder of the scanner contacts with the workpiece by elastic force, it can also be used when the detected object is stainless steel plate.
