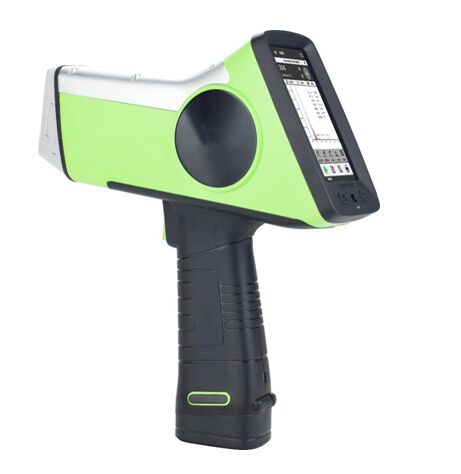

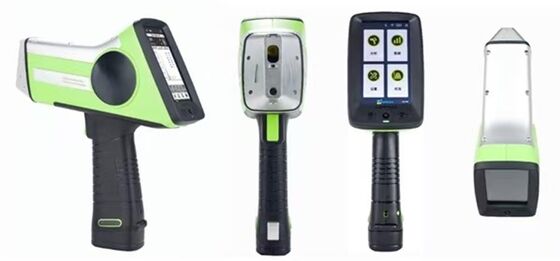

HXRF-145AT SDD Detector Handheld X-ray Fluorescence Element Analyzer Spectrometer
1. Main application areas of the product
1.1 Manufacturing industry
n Composition analysis of alloy materials
n Reliability Identification of Alloy Materials (PMI)
n Analysis of precious metals (gold, silver, platinum, palladium, rhodium, iridium)
n Measurement of Metal Coating Thickness
n RoHS compliance testing
1.2 Mining
n Exploration of mineral veins
n Analysis of ore grade
n Analysis of Rare Earth Composition
n Soil heavy metal detection
1.3 Recycling of renewable resources
n Catalyst precious metal detection
n Rapid classification of metals
n Valuationof Renewable Resource Trading
1.4Environment protection
n Soil heavy metal detection
n Bottom sediment and sediment detection
n Heavy metal detection in water
2．Main technical specifications and parameters
|
Usage environment
|
Temperature: -10°C~50°C; Humidity: 0-95% (20°C); Altitude: less than 5000m
|
|
Size and weight
|
Size:275mm×245mm ×82mm; Weight(Including battery):1.5Kg
|
|
Analysis object
|
Solid, powder, liquid
|
|
Analysis Element Range
|
From Mg to U,Detection content range:0.1ppm to 99.9% ,Depending on the type of object being tested, there are differences
|
|
Detector
|
Peltier effect cooled Fast-SDD detector,Resolution≤126eV
|
|
X-ray source
|
Ag targets, tube voltage: 6~50kV, tube current :0~200μA
|
|
Microcomputer system
|
Industrial grade 4-core 1.8GHz processor; 2GB RAM, 40GB data storage, capable of storing approximately 400000 spectral data; Built-in 4.5 inch high-definition backlight touch integrated color display screen
|
|
Operating system
|
Industrial grade Linux
|
|
USB interface
|
Two USB ports, capable of connecting to U disk and PC
|
|
Wireless interface
|
Built in WiFi and BT, can connect to NET or PC, Android phone, or Bluetooth printer
|
|
Remote control
|
Equipped with WinGUI software and Android APP, it can be connected to a computer or phone for data synchronization and sharing with instruments
|
|
Sample camera
|
Microcamera,Sample photos can be taken
|
|
Collimation, filtering, and calibration
|
2.6mm collimator, capable of detecting both large and small samples, 8-channel filter with a wider detection range, built-in calibration plate, program controlled automatic calibration, no need for external standard plates
|
|
Pressure compensation
|
Built-in barometer and automatic pressure compensation correction
|
|
Analysis software
|
NDT element analysis software can be configured with multiple analysis modes according to user needs: alloy analysis, ore analysis, catalyst detection, precious metal analysis, etc. Users can use their own samples to establish their own calibration curves. The software has a built-in alloy grade library of more than 500 types, and users can customize report content. The test results can be automatically displayed as ppm or%
|
|
Operating language
|
English, customizable for multiple languages
|
|
Radiation Safety
|
Equipped with password protection function,The head is equipped with a sensor that can automatically identify the sample, and X-ray excitation is automatically prohibited during aerial testing; Multi angle X-ray status warning; Work interface X-ray radiation <0.15 Μ Sv/h
|
|
Battery
|
6600mAh lithium battery with charged capacity display; The working time of a single battery is about 8 hours, hot swapping function, allowing for direct battery replacement without shutting down the machine; During operation, the battery level can be displayed synchronously on the handle and screen
|
|
Transportation Safety
|
Comply with ISTA 3A packaging and transportation drop, vibration, and impact test standards,UN38.3
|
|
Environmental adaptability
|
Comply with GB/T2423.1 and GB/T2423.2,IP54,CE
|
Package an attachment
1 packaging:Instrument specific protective box, foam buffer substrate
2 Product accessories:
|
Standard Accessories
|
|
Accessories
|
Description
|
Quantity
|
|
lithium battery
|
7.2V,6600mAh,with electric charge display,Hot swappable
|
1
|
|
Charging adapter
|
14V/4A
|
1
|
|
Charger
|
Can charge 2 batteries simultaneously
|
1
|
|
USB cable
|
Mini USB 1.5m
|
1
|
|
USB flash drive
|
32GB
|
1
|
|
Protective film
|
ElemtrackAtom series product specific
|
10
|
|
Wristband
|
|
1
|
|
Optional Accessories
|
|
Folding bracket
|
Aluminum alloy, foldable
|
1
|
|
Radiation protection cover
|
Used in conjunction with the bracket
|
1
|
|
Sample cup
|
Used for powder or liquid samples
|
1
|
