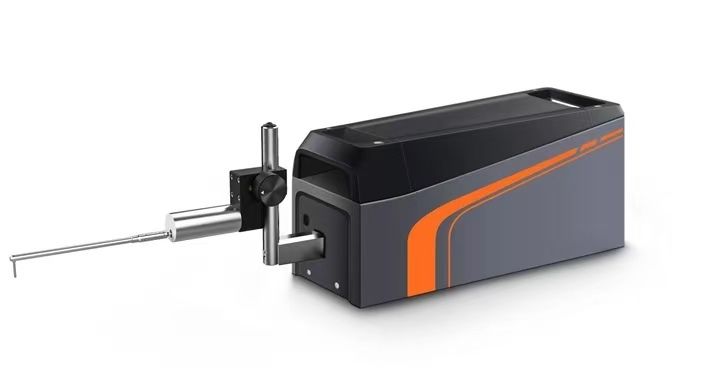

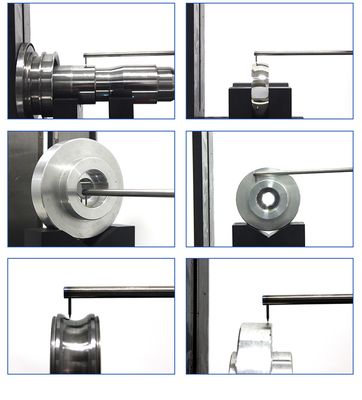

Model
|
SRT-7600
|
|
|
Range
|
X Direction
|
50mm
|
|
|
Z Direction
|
±5mm
|
|
|
Resolution
|
Z Direction
|
0.016μm/±500μm ~ 0.16μm/±5mm
|
|
|
Driver
|
Straightness
|
1μm/50mm
|
|
|
Analysis algorithm
|
Corresponding standard
|
JIS-82,JIS-87,JIS-94,JIS-01,JIS-13,ISO-84,ISO-97,DIN-90,ASME-95,GB-14
|
|
|
Parameter
|
Roughness profile
|
Ra75,Rq,Rp,Rv,Rc,Rt,S,R3z,PPI,Ra,Rsk,Rku,Ry,Sm,RΔa,RΔq,Rz,Pc,Rλa,Rλq,lr,RSm,Rz94,RPc,RS,Rz.I,Rpm,HSC
|
|
Waviness profile
|
WCA,WCC-q,WCC-p,WCC-v,WCC-m,WCC2Sm,WCA,WC-q,WC2p,WC-v,WCM,WC2Sm,WC-t,Wa,Wq,Wsk,Wku,Wp,Wv,Wz,Wc,Wt,WSm,WΔq,WPc
|
|
Original outline
|
Rsk,Rku,Rmax,Sm,Δa,Δq,Rz,λa,λq,lr,TILT A,AVH,Hmax,Hmin,AREA,Rz.J,Pa,Pq,Psk,Pku,Pp,Pv,Pc.I,Pt,PSm,PΔq,PPc,Pc
|
|
Support rate curve
|
Rk,Rpk,Rvk,Mr1,Mr2,V0,K,A1,A2
|
|
Graphic
|
NCRX,AR,R,Rx,NR,CPM,SR,SAR,AW,W,Wx,Wte,NW,SW,SAW,Rke,Rpke,Rvke,Mr1,Mr2,V0,K
|
|
|
Geometric tolerance
|
Convexity, inclination, straightness, perpendicularity, parallelism, runout
|
|
Evaluation curve
|
Roughness profile, waviness profile, original profile, support rate curve, graph
|
|
|
Characteristic curve
|
Support rate curves (Rmr(c), Rmr2(c), Rδc(c), tp(c), tp2(c), Htp(c)), amplituder-frequency analysis curves, amplitude distribution curves
|
|
|
Shape removal
|
Global domain, first half, second half, center, 2 points, curve
|
|
|
Filter type
|
Gaussian,FFT,PC,DP,2RC
|
|
|
Filter stop wavelength
|
λs
|
0,2.5,8,25μm
|
|
λc
|
0.08,0.25,0.8,2.5,8mm
|
|
λf
|
0.8,2.5,8,25mm
|
|
Evaluation length
|
Sampling length × number of samples
The sampling length has standard mode and custom mode.
|
|
|
Measurement speed
|
0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s
|
|
|
Return speed
|
0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s
|
|
|
Sensor
|
Model
|
Standard universal type
|
|
|
Sensor method
|
Differential inductor
|
|
|
Range
|
±50mm
|
|
|
Measuring needle
|
5μmR Diamond at 90°, 10μmR Diamond at 90°, optional
|
|
|
Force measurement
|
7.5mN (adjustable)
|
|
|
Operating machine
|
Display section
|
Computer
|
|
|
Data output
|
PDF/WiFi Print
|
|
|
Corresponding language
|
Chinese/English
|
|
|
Size and weight
|
Power supply/Consumption
|
AC220V±10% or UPS power
|
|
|
Power consumption
|
About 50VA
|
|
|
Weight
|
Net weight: 5Kg
It contains 10Kg of packaging
|
|
|
Set size
|
Actuator 350(L)×116(W)×146(H)
|
|
