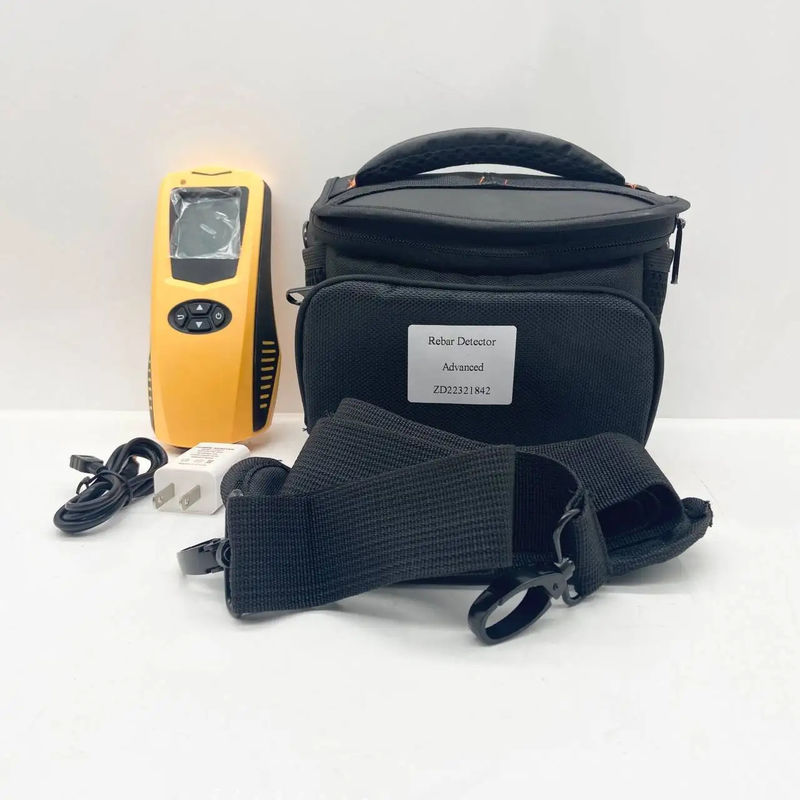

HLT-120X Concrete Rebar Detector for Location Thickness Diameter

HLT-120X Concrete Rebar Detector for Location Thickness Diameter
HLT-120X Concrete Rebar Detector for Location Thickness Diameter HLT-120X Concrete Rebar Detector for Location Thickness Diameter

Imagem Grande :  HLT-120X Concrete Rebar Detector for Location Thickness Diameter

Detalhes do produto:
Lugar de origem: China
Marca: HUATEC
Certificação: CE
Número do modelo: HLT-120X
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 unidade
Preço: USD678/set - USD767/set
Detalhes da embalagem: Caixa de embalagem de cartão
Tempo de entrega: 7-10 dias úteis após receção do seu pagamento
Termos de pagamento: T/T, Paypal
Habilidade da fonte: 10 conjuntos/mês

HLT-120X Concrete Rebar Detector for Location Thickness Diameter

descrição
Diâmetro Distância de medição ((mm): F6F50 Tempo de folga: Automático
Fonte de alimentação: Bateria de lítio recarregável Temperatura de trabalho: -10°C+42°C
Escala de medição (milímetros): Distância de localização: 1 ¢ 120 Primeira distância: 1 ¢ 60 Segunda distância: 30 ¢ 120
Destacar:

concrete rebar detector HLT-120X

,

rebar locator thickness diameter

,

non-destructive testing equipment rebar

HLT-120X High Resolution Concrete Structure Rebar Location Thickness Detector
Product Specifications
Attribute Value
Diameter Measuring Range (mm) Ф6~Ф50
Off Time Automatic
Power Supply Rechargeable Lithium Battery
Working Temperature -10℃~+42℃
Measuring Range (mm) Location Range: 1~120
First Range: 1~60
Second Range: 30~120
Product Description

HLT-120X High Resolution Concrete Structure Rebar Location Thickness Detector

Brief Introduction
The first generation portable rebar integrated detector HLT-120X uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model HLT-120X is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology.

HLT-120X series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts. The multiple coil structure design make it more accurate&responsive and higher resolution.

Technical Specifications
Items Technical Spec.
Diameter Measuring Range (mm) Ф6~Ф50
Measuring Range (mm) Location Range: 1~120
First Range: 1~60
Second Range: 30~120
Thickness Measuring Accuracy (mm) 1~40 | ±1
41~60 | ±2
61~80 | ±3
81~100 | ±5
101~120 | ±8
Rebar Location Accuracy 1~60 | ±3
61-120 | ±6
Diameter Measuring Modes Optional
JGJ Measurement Optional
Data Storage Optional
Off Time Automatic
Power Supply Rechargeable Lithium Battery
Working Temperature -10℃~+42℃
Size (mm) 170×78×38
Weight (kg) 0.28
Application Range
  1. Testing the location, distribution, direction, and diameter of the rebar and the thickness of cover in concrete structure projects.
  2. Inspecting and accepting concrete structural construction quality.
  3. Evaluating the quality of construction.
  4. Establishing the location of rebar for drilling, cutting and coring operations.
  5. Testing the distribution and direction of electric cables, pipelines and metalwork inside walls and floors.
  6. Testing the quantity of rebar when evaluating and developing the old structure, such as installation of furniture and air-condition.
Features

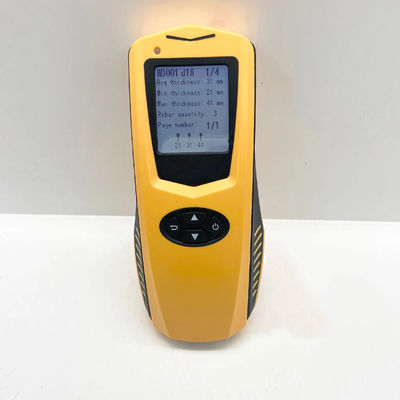

  • The high resolution LCD display: 128 x 128 pixels
  • The intuitive operation and handheld ergonomic design with good durability
  • Accurately detect the location of the rebar
  • Help extend life of drill and avoid damage when drilling and coring
  • The multi coil structure design with high speed, high precision and high resolution
  • The built-in high capacity lithium battery, low power consumption, standby for no less than 20h
