Bonding Strength Pull Off Tester HKSM-1
Detailed Product Description
Pull-out adhesion testers measure the adhesion of metal, concrete and other material coatings - the self-positioning feature brings a whole new revolution in the way adhesion is measured. The working principle of the instrument is to use the hydraulic system to measure the adhesion of the coating of a certain diameter on the surface of the substrate to measure the adhesion. The multifunctional digital display of the tester displays the size of the adhesion, in MPa or KN. The product is designed and manufactured according to relevant international and national standards, with leading technology and stable performance.
Meet the standard:
1) ISO 4624 (Paints and varnishes-Pull-offtest for adhesion)
2) ASTM D 4541 (StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers)
3) ASTM D7234 (Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers)
4)GB/T 5210-2006 "Adhesion test of paint and varnish pulling method"
Instrument features:
1.Portable handheld instrument, can be used in any place, no external power supply - can be used in the laboratory, can be used in the field.

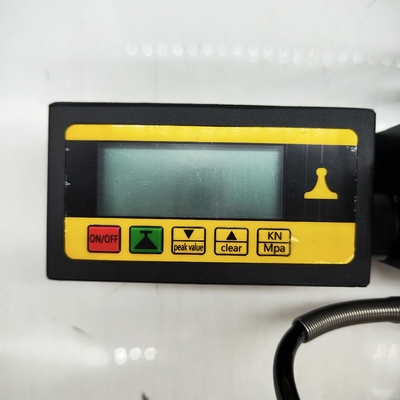

2. Large and easy to read LCD digital display.
3. Select the spindle size, measurement unit and storage data, and automatically calculate the result according to the spindle size.
4. Portable instrument box with alloy and stainless steel body, rain proof, dust proof, anti-impact.
5. High quality hydraulic pump can be applied to any occasion, warranty for three years.
6. The pressure and display system are calibrated by the standard dynamometer, the accuracy is controlled within ±1% (full scale).

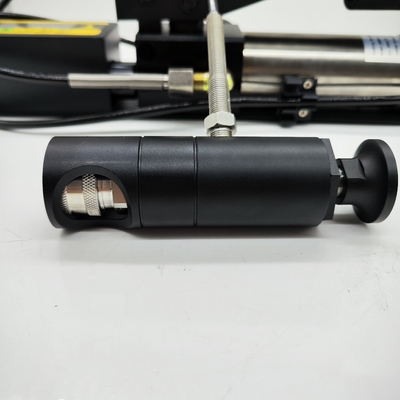

7. Self-positioning spindle, smooth and rough surface has no effect on the measurement results.
8. High-grade industrial pressure sensor to ensure continuous high precision.
9. Optional 10mm, 14mm, 20mm and 50mm spindle.
10. LCD display, you can select MPa or KN unit.
Main parameters:
Force measurement range: 0-10 KN
Strength value measuring range: 10mm spindle 0-127.38MPa
14mm spindle 0-64.99MPa
20mm spindle 0-31.84MPa
50mm spindle 0-5.09MPa
Display resolution: 0.001KN / 0.001MPa
Piston stroke: 10 mm
Indication error: ≤±1%F.S
Mass (main engine) : 2.8Kg

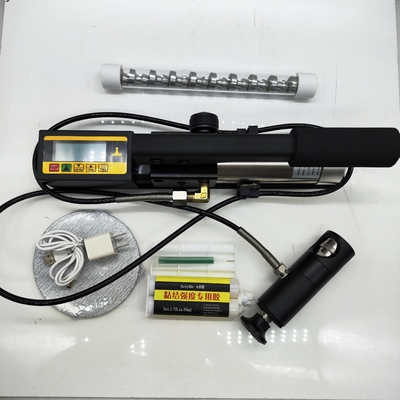

Standard configuration:
1. Digital display manual pump 1pc
2. Pull out the sleeve quickly 1 pc
3. Charger 1 pc
4. Standard 20mm spindle 10 pcs (if you need other sizes, please contact us.)
5. Cutters 1 pc
6. Abrasive pads 6 pieces
7. Adhesive 1set
8. Certificate, warranty card, manual 1each
9. Portable instrument case 1 pc
